BASIC TECHNICAL SPECIFICATIONS



Range of wheel tread diameters: 700 to 1,300 mm
Maximum wheelset weight: 3,500 kg
Available multi track gauge version



PURPOSE

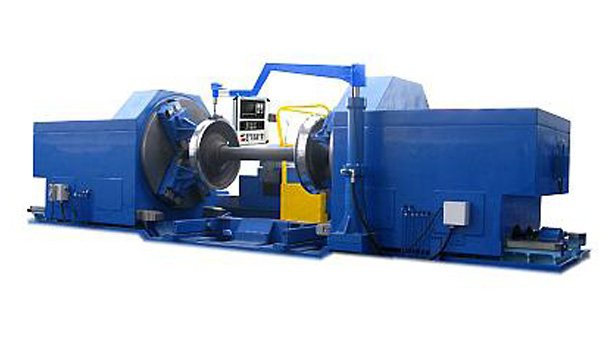

The UBE 150 N Abovefloor Wheel Lathe is a CNC double-saddle special-purpose lathe designed for reprofiling of wheels used in rail vehicles. The machine tool ensures productive machining of solid (monoblock) wheels and wheels with tyres of both used and new wheelsets.

The wheelsets can be provided with outboard axle boxes, gears installed between the wheels, or brake discs.

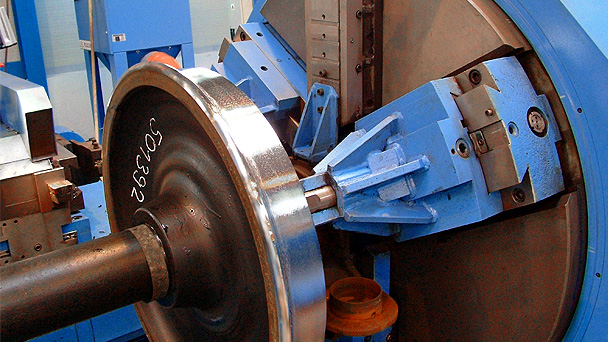

The wheelset is rolled onto the built-in wheelset elevator along rails and automatically centred and clamped in centres and driving dogs installed on spindle face plates.

The main drive is powered by two AC motors of continuously variable rotation rates and digitally controlled in master / slave system.

The UBE 150 N Abovefloor Wheel Lathe is capable of performing the following operations:

  • Turning of wheel profile according to technological program.
  • Wheel rim inner facing.
  • Turning of tyre in order to remove retaining ring.
  • Wheel rim outer facing.
  • Turning of limit machining groove.
  • Turning of wheel centre.
  • Axle-mounted brake disc facing.
  • Wheel-mounted brake disc facing.



MAIN FEATURES



  • Major body elements made as extremely rigid, heavily ribbed box-type high-grade iron castings guaranteeing the best dumping of vibrations produced during cutting process.
  • Main drive powered by two AC motors of continuously variable rotation rates and digitally controlled in master / slave system.
  • Automatic and reliable profile wear measurement using touch-type measuring heads (laser-based measurement as option).
  • Productive machining of narrowed (economical) wheel profiles.
  • Operation in roll-in roll-out system.
  • Versatile equipment and wide programming capabilities facilitate easy machining of unusual wheel profiles.
  • Available in multi track gauge version.
