Single column lathes / workpiece up to 9 tonnes





BASIC TECHNICAL SPECIFICATIONS



Maximum turning diameter: 2.000 mm
Maximum height of turning: 1.800 mm
Maximum table load: 9 × 10 kN



PURPOSE

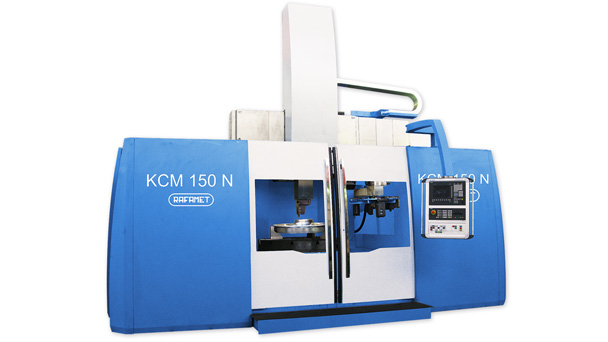

The KCM Series Heavy-duty Single-column Vertical Turning Lathes are intended for turning and boring of cylindrical, conic and curved surfaces, as well as complex shaped large-size workpieces.

The railhead can be equipped with a tool spindle, making it possible to perform also drilling and milling operations.

The use of the latest Siemens SINUMERIK 840D CNC and digital drive technology guarantees maximum performance and the complete compatibility of all drive and control components.

The KCM Series Vertical Turning Lathes along with a wide array of optional equipment are customized to meet the Customer’s individual requirements.

The machine tool body system consists of base with table and one wide column mechanically connected what forms a rigid and stable structure. All the machine tool major members are made as high grade iron castings. This ensures both high geometrical stability and excellent vibration damping, better than those of the fabricated structures.



MAIN FEATURES



  • Compact design tailored to stringent machining requirements
  • High rigidity and accuracies of machining
  • High torque on table providing high cutting parameters
  • Complex machining of workpieces with one or two railheads
  • Railhead(s) for turning, optionally for milling and drilling operations
  • Feed drives of X and Z axes realized through precise ball-screw transmissions
  • Tool / toolhead magazines - option
  • Direct measurement of CNC axes position by means of Heidenhein high-resolution linear scales
  • Main drive and C-axis drive
  • ISO/BT, CAPTO, KM or any other tooling system
  • Measurement of cutting tools - option
  • Measurement of machining workpiece - option
  • Grinding attachement - option
  • Cooling system for cutting tools - option
