BASIC TECHNICAL SPECIFICATIONS



Range of wheel tread diameters: 540 to 1,500 mm
Maximum axle load: 30/40 x 10 kN
Minimum wheel base: 1,900 mm
Available multi track gauge version



PURPOSE

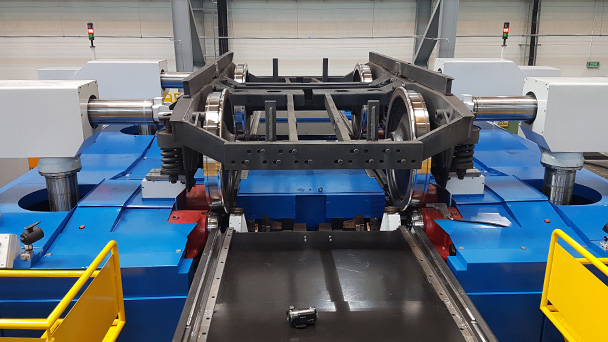

The 2 UGE 300/400 N Tandem Underfloor Wheel Lathes are composed of two single CNC double-saddle special-purpose lathes, designed for machining of wheelsets used in rail vehicles. Its main application is reconditioning of wheel profiles and facing of brake discs of two wheelsets of heavy rail vehicles (locomotives) without dismantling them from the vehicles.
This significantly shortens the shutdown time of vehicles and thus increases the efficiency of their exploitation. Reprofiling of single wheelsets or bogies dismantled from vehicles is also possible.

The machine tool is also available in the single configuration (UGE 300/400 N), which is capable of machining only one wheelset.

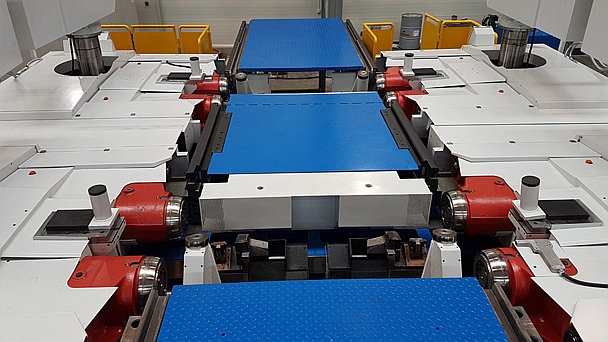

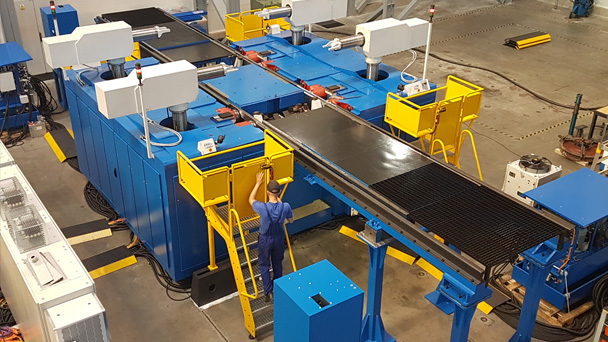

The machine is installed on a pit-type foundation (below the traffic rails), which ensures its operation in a roll-through system.

The 2 UGE 300/400 N Underfloor Wheel Lathe is capable of performing the following operations:

  • Turning of wheel profile according to technological program.
  • Wheel rim inner facing.
  • Wheel rim outer facing.
  • Turning of limit machining groove.
  • Axle-mounted brake disc facing.
  • Wheel-mounted brake disc facing.



MAIN FEATURES



  • Compact and extremely rigid design based on a single-piece high-grade grey iron casting, which guarantees both the machine tool high geometrical stability and the most efficient vibration damping.

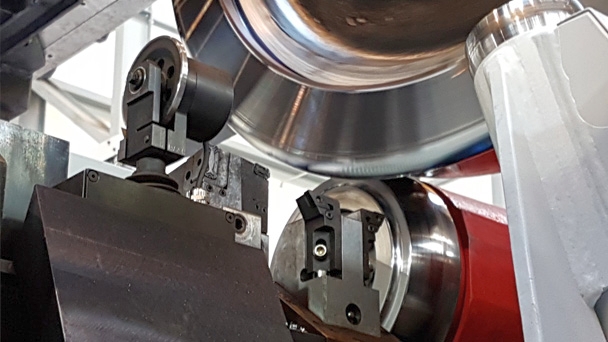

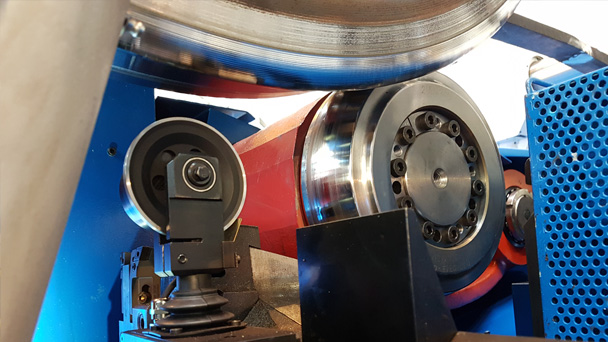

  • Unique system of wheelset lifting and driving realized by four independent drives ensuring flexible pressure of rollers and constant contact between driving rollers and wheels.
  • Automatic and reliable profile wear measurement using touch-type measuring heads (laser-based measurement as option).
  • Productive machining of narrowed (economical) profiles.
  • Versatile equipment and wide programming capabilities facilitate easy machining of unusual wheel profiles.
